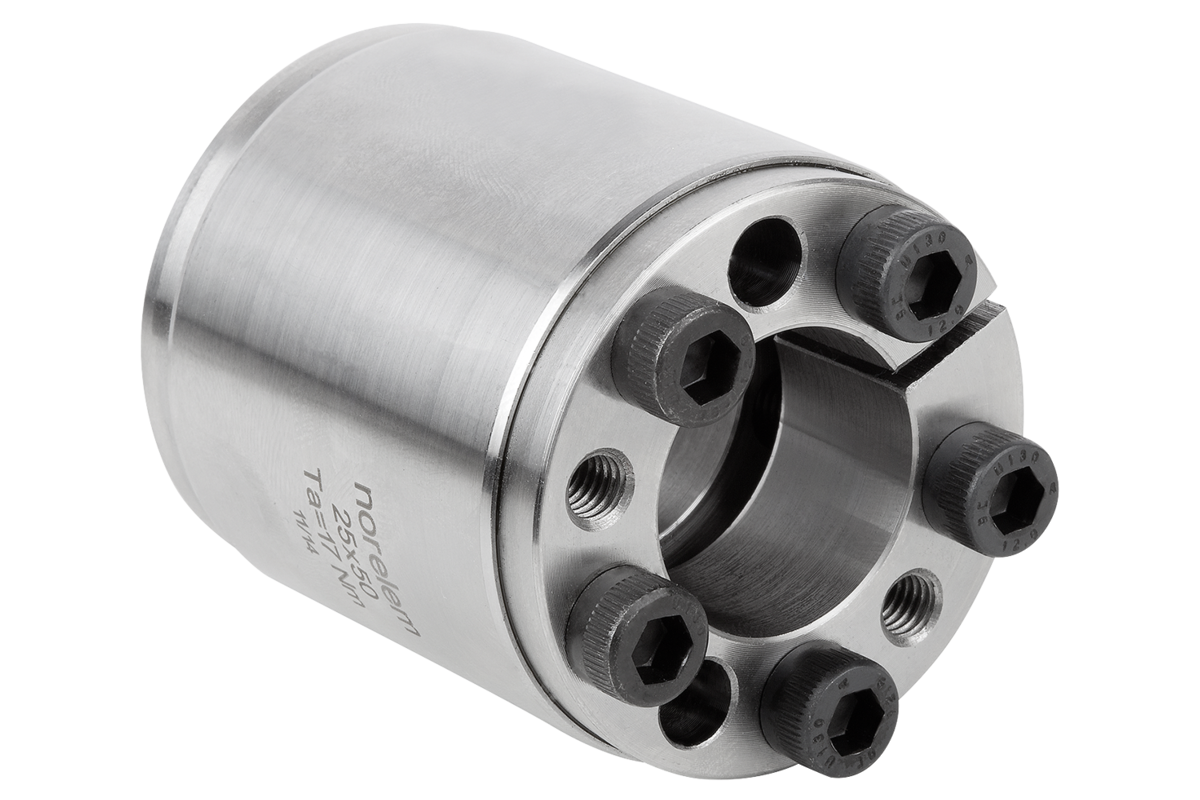

Keyless locking couplings Form H for high torques

a partir de 21,23 €

+ o ICMS alemão
17 resultados encontrados

Descrição

Material
Steel.
Versão
Bright.
Indicação
Keyless locking coupling for extremely high torques.


- for shaft diameters from 25 to 85 mm
- for high torques
- minimum axial offset when mounting
- self-centring

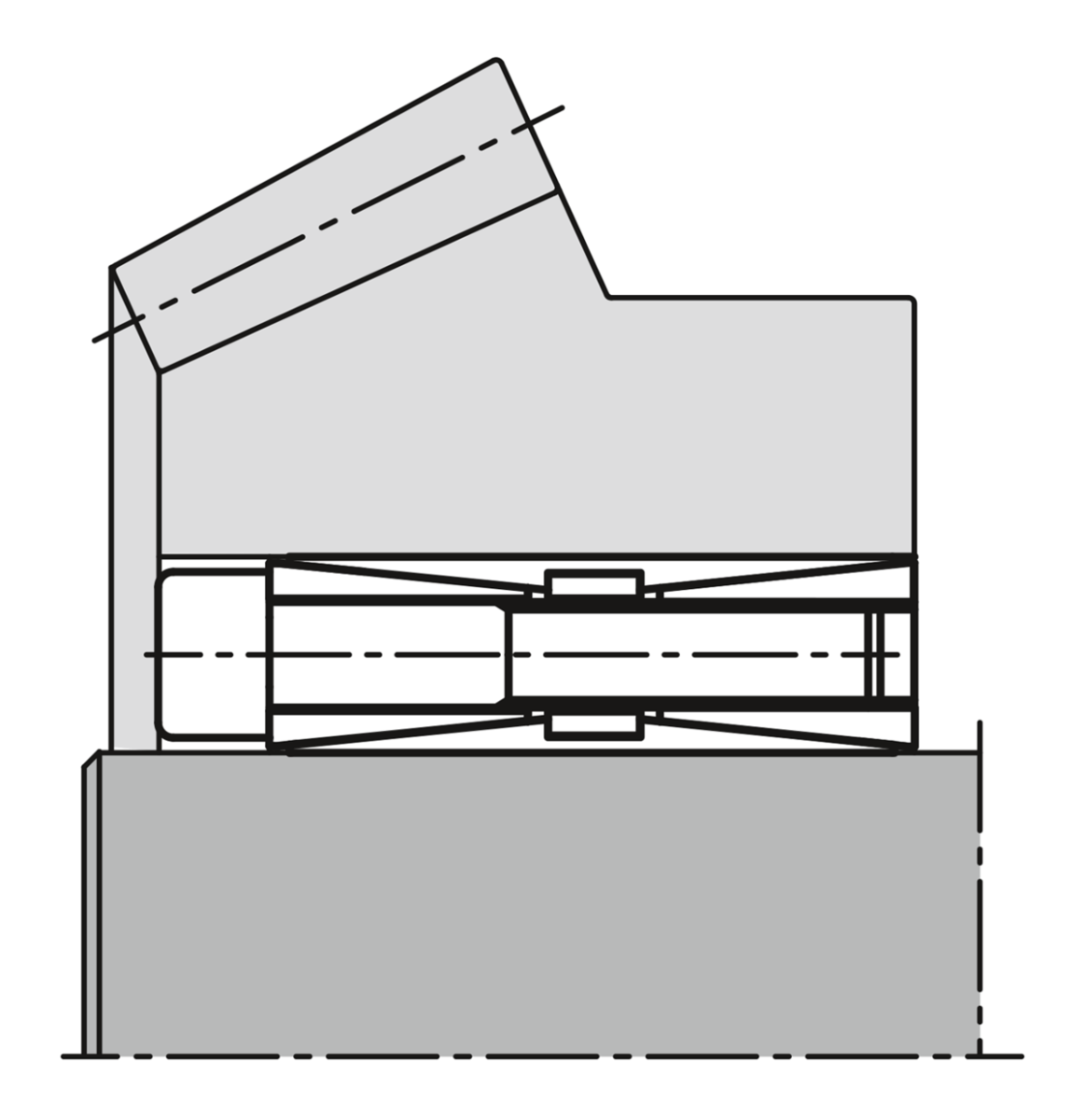

Montagem
Lightly oil keyless locking coupling on the tapered faces and contact points of the shaft and hub. Do not use MoS2 or grease. Insert keyless locking coupling in the hub seat and slide onto shaft. Tighten screws crosswise in several increments to the defined tightening torque.

Dismantling: Remove all screws and screw into the extraction threads of the front flange. Tighten screws crosswise in several steps until the keyless locking coupling loosens.
Tolerâncias
Shaft:
Recommended tolerance h8.
Surface quality Rz ≤ 16 µm.

Hub:
Recommended tolerance H8.
Surface quality Rz ≤ 16 µm.
